CE Rotary Drum Dryer For Feed Bagasse Chicken Manure Drying Machine

Brand Name : XDEM

Place of Origin : Henan,China

MOQ : 1set

Price : USD19000-25000

Payment Terms : L/C, T/T

Supply Ability : 50sets per month

Delivery Time : 22-30days

Features : Rotary Drum Dryer

Dimension(L*W*H) : Based On Model

Production Capacity : 0.5-40t/h

Key Selling Points : Drying the Manure

Heating way : Gas Heating

Voltage : 380V

Weight : 5000 KG

Contact Now

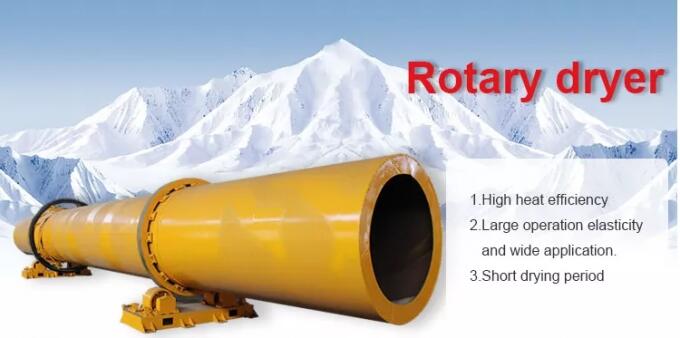

Product Overview
Rotary dryer is widely used in building materials, metallurgy, mineral processing, chemical industry, cement and other industries.It is mainly used in coal, lignite, gupsum,slag, sludge, limestone, clay, river sand, quartz sand, water slag and other high moisture, large proportion of materials.
Rotary drying production line is mainly composed of rotary cylinder, air diversion equipment, lifting board, self cleaning device,transmission device, conveying equipment, hot air equipment, reducer, supporting device and sealing device.
CE Rotary Drum Dryer For Feed Bagasse Chicken Manure Drying Machine
CE Rotary Drum Dryer For Feed Bagasse Chicken Manure Drying Machine
Specification
Model
(mm)
Obliquity
(%)
Rotation speed
(r/min)
Feeding temperature
(degree)
Power
(kw)
Capacity(t/h)
Weight
(t)
Ø600x6000
3-5
3-8
<=700
3
0.5-1.5
2.9
Ø800x8000
3-5
3-8
<=700
4
0.8-2.0
3.5
Ø800x10000
3-5
3-8
<=700
4
0.8-2.5
4.5
Ø1000x10000
3-5
3-8
<=700
5.5
1.0-3.5
5.6
Ø1200x10000
3-5
3-8
<=700
7.5
1.8-5
14.5
Ø1200x12000
3-5
3-8
<=700
11
2-6
14.8
Ø1500x12000
3-5
2-6
<=800
15
3.5-9
17.8
Ø1800x12000
3-5
2-6
<=800
18
5-12
25
Ø2200x12000
3-5
1.5-6
<=800
18.5
6-15
33
Ø2200x18000
3-5
1.5-6
<=800
22
10-18
53.8
Ø2200x20000
3-5
1.5-6
<=800
30
12-20
56
Ø2400x20000
3-5
1.5-5
<=800
37
18-30
60
Ø3000x20000
3-5
1.5-5
<=800
55
25-35
78
Ø3000x25000
3-5
1.5-5
<=800
75
32-40
104.9

Structure and Working Principle of Sludge and Manure Dryer
CE Rotary Drum Dryer For Feed Bagasse Chicken Manure Drying Machine

1.Structure

The drying equipment mainly consists of feed part, dryer part, dust removal part, combustion part and discharge part.

2.Working Principle

The material on the spot is sent to the screw feed port of quantitative conveying by belt conveyor to enter the dryer. There are lifting plates in the dryer cylinder, and there is a mixing and dispersing system in the middle. The rotating speed of the
cylinder and the rotating speed of the mixing shaft can be adjusted quickly and slowly. Thus, the material particles are uniform and the heat absorption is fast. The dried materials are transported to the material yard by belt conveyors, and the burning part is converted from coal to gas through a gas generator for combustion, which further improves the utilization rate of fuel and reduces the pollution caused by a large number of sulfides and dust caused by the direct combustion of coal. The flue gas in the drying process is absorbed into the pool by the cyclone dust collector.

3. Drying Effect

The moisture content of chicken manure about 75% was reduced to about 20% after treatment in the dryer, which can be stored at room temperature. Salmonella was not detected in dried samples. The total number of bacteria was less than 100 in per gram sample and the colibacillus was less than 30 in per 100g sample
Scene Pictures of Customers
CE Rotary Drum Dryer For Feed Bagasse Chicken Manure Drying Machine
